FM/AM Quartz Synthesizer Stereo Tuner T-K20
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1982
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 209408
Aus den Hersteller-Unterlagen

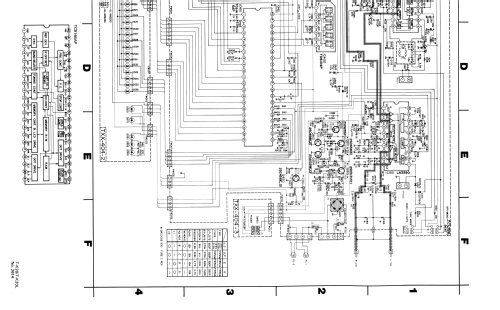

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM/AM Quartz Synthesizer Stereo Tuner T-K20 - JVC - Victor Company of Japan,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 435 x 77 x 288 mm / 17.1 x 3 x 11.3 inch
- Notes
- FM/AM Quartz Synthesizer Stereo Tuner.
AFC, Hi-Blend, LED Signal Indicator, 6 Presets.
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
