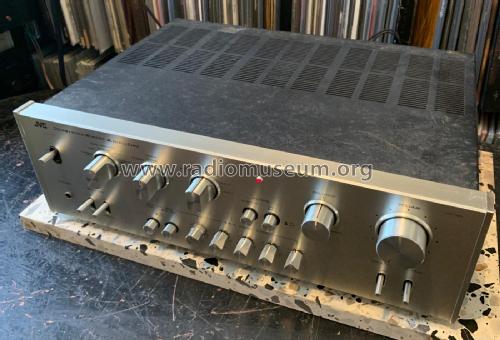

Integrated Stereo Amplifier VN-700
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 319181
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Integrated Stereo Amplifier VN-700 - JVC - Victor Company of Japan,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 16 x 5 x 12 inch / 406 x 127 x 305 mm
- Notes
-
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 50kHz
Total harmonic distortion: 0.05%
Damping factor: 50
Input sensitivity: 2.5mV (MM), 200mV (line)
Signal to noise ratio: 55dB (MM) , 80dB (line)
Output: 180mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
- Net weight (2.2 lb = 1 kg)
- 22 lb (22 lb 0 oz) / 9.988 kg
- Author
- Model page created by Bartosz Szwed. See "Data change" for further contributors.
