• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343841

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage

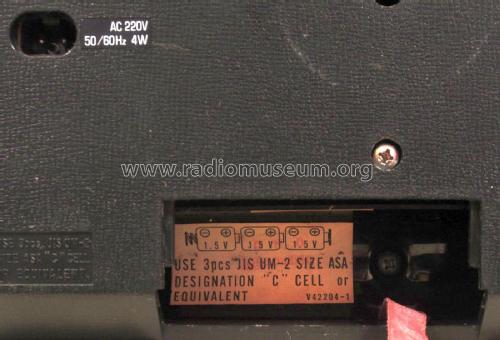

• Line / Batteries (any type) / C:3x1.5 V, 50-60 Hz,110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

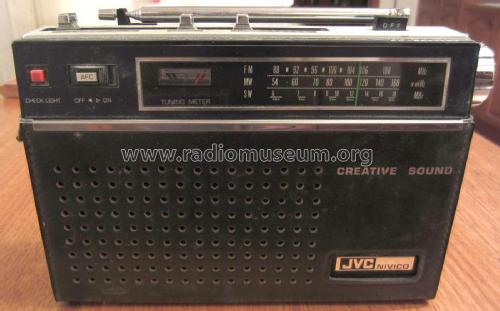

• Model: JVC/Nivico FM/SW/MW Portable Radio 8204R - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8 x 5.22 x 2.25 inch / 203 x 133 x 57 mm

• Notes

• JVC/Nivico, FM/SW/MW battery, or AC-powered Portable Radio.

  Bands:

  FM:	88 - 108 MHz
  SW:	6 - 18 MHz
  MW:	540-1800 kHz

  Jacks:

  • Earphone
  • Recording
  • FM MPX output jacks

  Supplied with a leather carrying case.

• Net weight (2.2 lb = 1 kg)
• 2.4 lb (2 lb 6.4 oz) / 1.090 kg

• Mentioned in

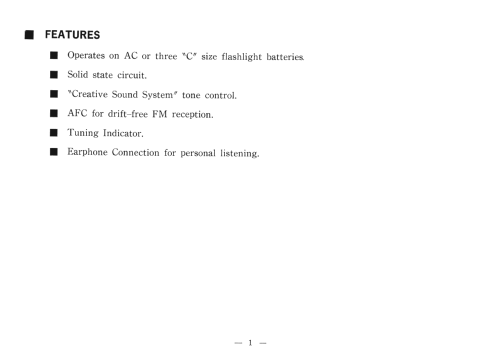

• - - Manufacturers Literature (Owners Manual, VZ0386)

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
