Nivico 9 Transistor 3 Band Deluxe 9A-301

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306736

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / D: 4 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.6 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Nivico 9 Transistor 3 Band Deluxe 9A-301 - JVC - Victor Company of Japan,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.625 x 5.25 x 2.25 inch / 244 x 133 x 57 mm
  • Notes

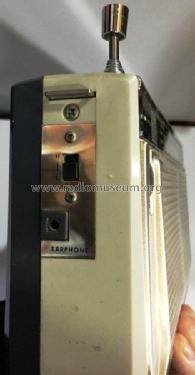

  • Nivico Model 9A301 Portable Radio

    Battery operated nine-transistor 3-band portable radio in an attractive plastic cabinet. Supplied with genuine leather carrying case.

    Features: with a power output of 600 mW this radio has two 3½-inch speakers.  Provided with tuning indicators for fine tuning and tone control.  Also featured is a "Magic Meter" for battery life indication and precise tuning.

    Specifications: frequency response: MW 535 - 1605 kHz; SW1, 3.2 - 8.5 MHz; SW2, 8.5 - 22 MHz.  Speakers: two 3½-inch PM dynamic; batteries, 4 x UM1 (D cells). (FROM MINGAY'S PRICE SERVICE)

  • Price in first year of sale
  • 45.15 AUS £
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
