Nivico MSL-501L

• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 320100

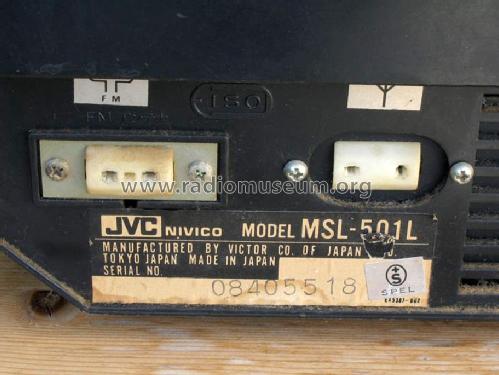

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Nivico MSL-501L - JVC - Victor Company of Japan,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 170 x 375 mm / 19.7 x 6.7 x 14.8 inch

• Notes

• JVC Nivico MSL-501L is a FM/AM/LW stereogram with 2-speed record player.
  European antenna jacks according to IEC standards.

  Two Speakers (model MSL-501E) included, each with 6½" woofer & 2" mid/treble.

  See also model MSL-501E with AM and FM bands.

  See Service Manual for a list of specific transistors.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
