Nivico N-300
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1963–1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 310279
- Number of Tubes
- 8
- Number of Transistors
- 1
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-235 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Nivico N-300 - JVC - Victor Company of Japan,
- Dimensions (WHD)
- 44 x 29 x 8 inch / 1118 x 737 x 203 mm
- Notes
-

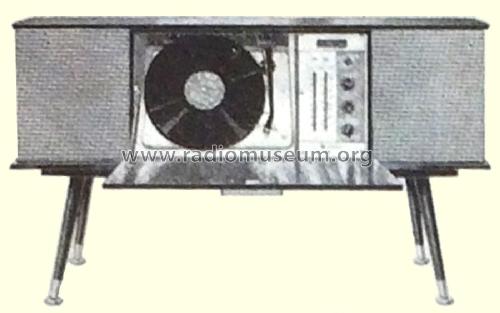

Nivico Model N300 Stereogram
Stereophonic console specifically designed for small homes or home units. Depth is only 8 inches. A three-position unit, it can be used conventionally with legs, without legs or table or mantelpiece, or suspended on a wall (14" high without legs). Finished in walnut.
Features: four-speed inclined record player incorporates a switch system which can turn the complete unit off, if required, on completion of record. Magnetic regulator, balanced tone arm; ceramic turnover type cartridge with sapphire needle.
Twin tuners: one SW/MW, one MW, permitting reception of MW stereo broadcasts. One AM tuner I.F. is 455kHz and the other is 475kHz. Short-wave band: 3.8 to 12MHz. Chassis has eight tubes and four diodes, and incorporates adjustable reverberation.
Speakers: two 8-inch dual-cone with independent volume controls for each; total output 5W. Power supply: 100-250V. (FROM MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 131.25 AUS £
- Mentioned in
- Mingay's Electrical (Retail) WEEKLY (New Products, 5/4/1963.)
- Literature/Schematics (1)
- -- Original-techn. papers. (JVC Nivico Service Note No. 2026.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Group 1, September 1966, Page N100.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
