• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 132017

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 240; 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: P-100UKC - JVC - Victor Company of Japan,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 60 x 190 mm / 5.9 x 2.4 x 7.5 inch

• Notes

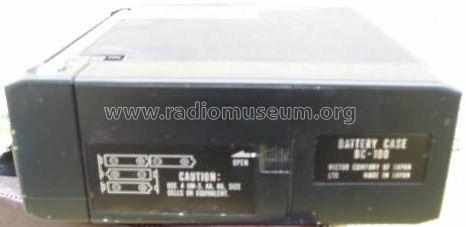

• JVC P-100UKC; 2"/50 mm b/w TV with GB standard I UHF tuner and CCIR B/G VHF/UHF tuner, AM & FM radio, mains voltage with adapter only, accu pack BP-100V, magnifier lens, ext. antenna jack for AE-100 IEC adapter.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Funkschau (21/1978, S.1029)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
