- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1980
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148790
Original Prospekt
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

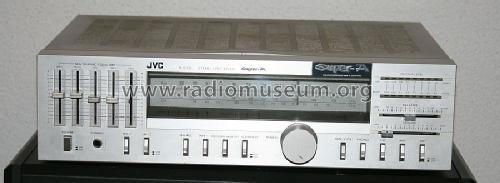

- Model: R-S33L - JVC - Victor Company of Japan,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 422 x 119 x 345 mm / 16.6 x 4.7 x 13.6 inch
- Notes
- Super-A 3-Band Stereo-Receiver mit 2 x 50 Watt Sinus an 4 Ohm (Gesamtklirrfaktor 0,005%).
S.E.A. grafischer Stereoentzerrer für eine erweiterte Aussteuerung von 5 getrennten Tonbereichen und S.E.A. Aufnahmevorrichtung zur Aufzeichnung von entzerrten Programmen.
LED-Pegelspitzenanzeiger in jedem Kanal.
- Net weight (2.2 lb = 1 kg)
- 7.2 kg / 15 lb 13.7 oz (15.859 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funkschau (21/1980, S. 63 / HiFi 80 in Düsseldorf)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
