Radio Cassette Recorder RC-550L (Japan 516)

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 161592

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

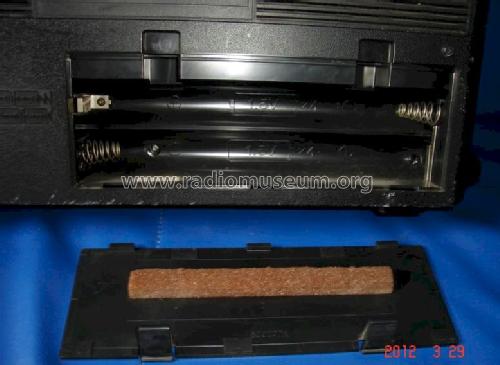

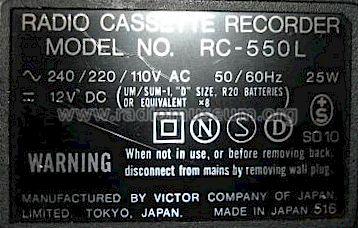

  • Line / Batteries (any type) / 110; 220; 240/ 8 x 1,5 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Cassette Recorder RC-550L - JVC - Victor Company of Japan,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 19.5 x 14 x 7.5 inch / 495 x 356 x 191 mm
  • Notes

  • JVC RC-550L Radio Cassette Recorder;
    Mono "Ghettoblaster - Boombox"
    Featuring:
    Super Dynamic Sound 3 Way Speaker System
    Swivel Mic System
    Mic Mixing System
    FM: 88 - 108 MHz,
    SW2: ~6 - 18 MHz,
    SW1: 49 m band,
    Fine tuning, signal meter, dial light, bass & treble control, mixing function & balance, manual or autom. rec. level, swivel mic. on top, tape counter with memory, CrO2 bias/eq, 5 LED level indicator, 10" woofer, 3" mid & 2" tweeter, ext. 12 VDC in, DIN I/O terminal, earphones & mic. jack port, massive carrying front handles.

    Made in Japan 516

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
