• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185336

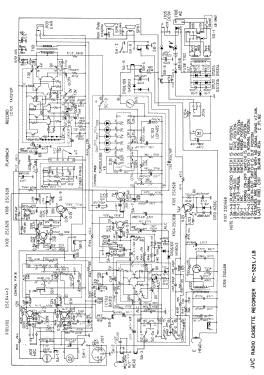

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240/ 12; 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Cassette Recorder RC-525L - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 406 x 242 x 117 mm / 16 x 9.5 x 4.6 inch

• Notes
• JVC RC-525L Radio Cassette Recorder;
  Richtmikrofon, Signal Meter.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Mentioned in
• - - Manufacturers Literature (JVC Radio-Kassetten-Rekorder ~1978?)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
