Radio-TV-Cassette Recorder 3060

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1976
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 196825

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 60Hz, 120 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio-TV-Cassette Recorder 3060 - JVC - Victor Company of Japan,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 380 x 115 x 250 mm / 15 x 4.5 x 9.8 inch
  • Notes

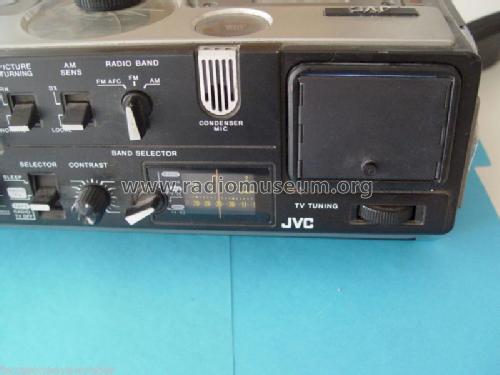

  • JVC 3060 Radio-TV-Cassette Recorder FM/FM-AFC/AM-MW/TV-VHF/TV-UHF;
    3" b/w TV with US FCC standard VHF/UHF tuner, picture turning switch,
    Radio: cycle scale, bass & treble control, mix balance control, dial light, tuning/batt./level meter, AM sens. switch,
    Cassette-recorder: built-in condenser microphone, tape counter, tape sleep timer

    See also these similar JVC models

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
