Radio-TV-Cassette Recorder 3060CQ
JVC - Victor Company of Japan, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1976 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 303498
- Number of Tubes
- 1
- Valves / Tubes
- 85JB4
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Cassette-Recorder or -Player
- Power type and voltage

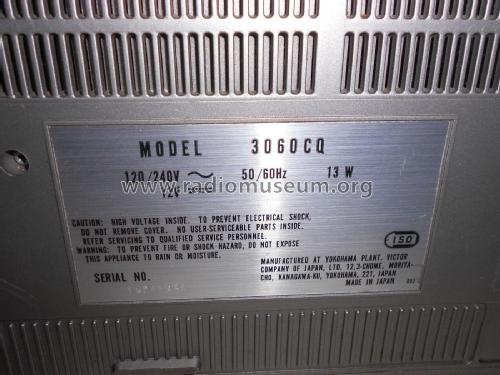

- Line / Storage batteries (perhaps also batteries) / 120; 240 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radio-TV-Cassette Recorder 3060CQ - JVC - Victor Company of Japan,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 250 x 115 mm / 15 x 9.8 x 4.5 inch
- Notes
-

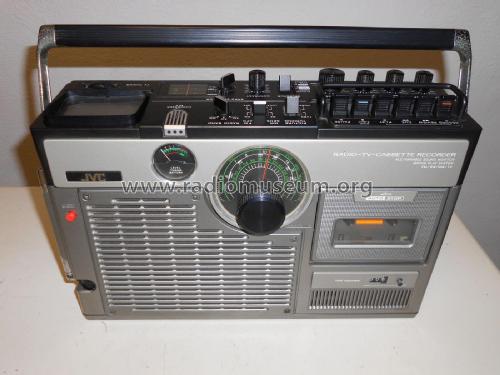

JVC 3060CQ is a 3" b/w Radio/Cassette/TV with CCIR B/G VHF/UHF tuner.
Frequency ranges: FM / SW / MW / TV-VHF / TV-UHF
Antennas: telescopic antenna for TV - internal/ext antenna switch for TVTV: Picture turning switch, manual tuning for VHF/UHF channels;
Radio: round dial scale, bass and treble control, mix balance control, dial light, tuning / batt. / level meter, FM AFC/MW sens switch;Cassette recorder: Condenser microphone, tape counter, tape sleep timer, ALC/Variable - Sound Monitor Mixing Play System, Beat cut switch
Connections: Remote/Mic sockets, Aux in, earphone, normal/charge switch, socket for external 12 VDC power supply, carrying handle.
See also these similar JVC models
- Radio-TV-Cassette Recorder 3060 (US version)
- Radio-TV-Cassette Recorder 3060AUL (Australian version)
- Radio-TV-Cassette Recorder 3060EU-C (Continental European version)
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
