• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1995 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 305176

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org

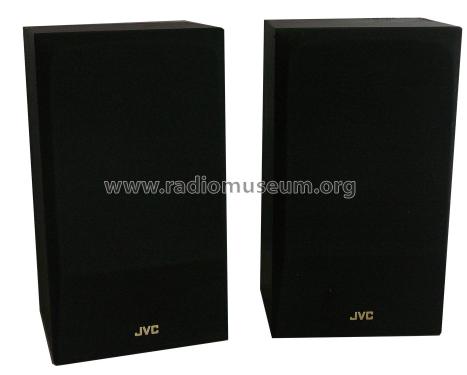

• Model: Speaker System SP-V50 - JVC - Victor Company of Japan,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 230 x 410 x 206 mm / 9.1 x 16.1 x 8.1 inch

• Notes

• JVC Spaker System SP-V50, 3-way bass-reflex type, 8 ohm / 80 W

  • Woofer: 16 cm
  • Midrange: 6.5 cm
  • Tweeter: 2 cm

  Made in Belgium.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
