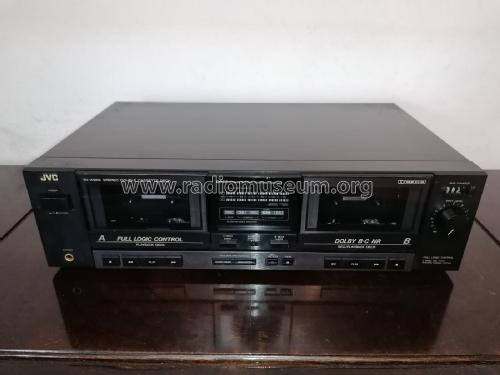

Stereo Double Cassette Deck TD-W203

JVC - Victor Company of Japan, Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 345935

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stereo Double Cassette Deck TD-W203 - JVC - Victor Company of Japan,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 123 x 288 mm / 17.1 x 4.8 x 11.3 inch
  • Notes

  • Specifications

    • Type: double compact cassette deck
    • Track System: 4-track, 2-channel stereo
    • Tape Speed: 4.8, 9.6 cm/s
    • Heads: 1 x record/playback, 1 x playback, 1 x erase
    • Tape Type: type I, CrO2, Metal
    • Noise Reduction: B, C
    • Frequency Response: 30Hz to 16kHz  (Metal tape)
    • Signal to Noise Ratio: 58dB
    • Wow and Flutter: 0.08%
    • Total Harmonic Distortion: 1.0%
    • Input: 80mV (line)
    • Output: 0.3V (line)
  • Net weight (2.2 lb = 1 kg)
  • 4.3 kg / 9 lb 7.5 oz (9.471 lb)
  • Author
  • Model page created by Francisco Martins. See "Data change" for further contributors.
