• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1983

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 254492

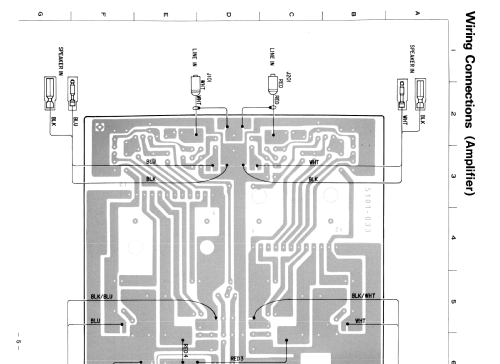

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2SC536 2SC536 2SA608 2SD1111

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 14,4 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (50 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Power Amplifier KS-A50 - JVC - Victor Company of Japan,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 150 x 25 x 140 mm / 5.9 x 1 x 5.5 inch

• Notes

• Power-Amp for Car.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Mentioned in

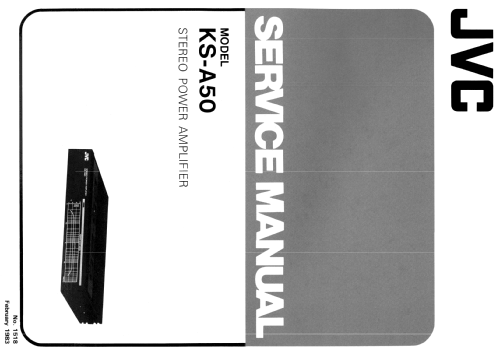

• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
