• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286888

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 60Hz; 120 / AA: 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Power out
• 2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

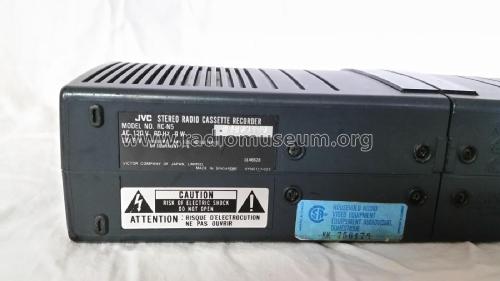

• Model: Stereo Radio Cassette Recorder RC-N5 [FM-AM] - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 165 x 80 mm / 12.6 x 6.5 x 3.1 inch

• Notes

• w dim 440 mm  when fully extended out.

  See also the multi-voltage three-band FM-MW-LW variant RC-N5

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Rolf Franke. See "Data change" for further contributors.
