• Country
• Japan

• Manufacturer / Brand
• JVC - Victor Company of Japan, Ltd.; Tokyo

• Year
• 1978 ??

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 132880

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 100; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Victor M-5 - JVC - Victor Company of Japan,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 110 x 220 mm / 9.1 x 4.3 x 8.7 inch

• Notes

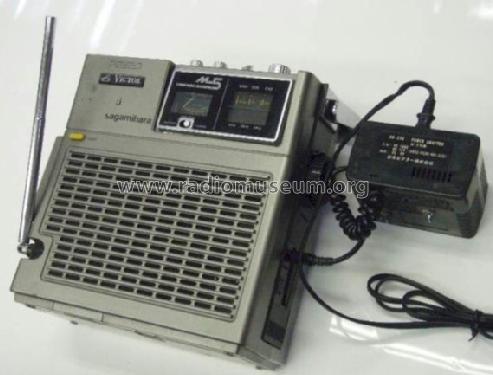

• Victor M-5,
  ~5" b/w TV with japan. standard VHF-/UHF tuner and SW, MW & jap. FM radio, built-in telescopic antenna.
  100 V AC with external adaptor, TV 10 W - R 4.5 W power consumption.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 994 models, 877 with images and 144 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from JVC - Victor Company of Japan, Ltd.; Tokyo
