- Country
- Japan
- Manufacturer / Brand
- JVC - Victor Company of Japan, Ltd.; Tokyo
- Year
- 1976 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 149022
Original Prospekt
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 7 or more Loudspeakers
- Material
- Various materials
- from Radiomuseum.org

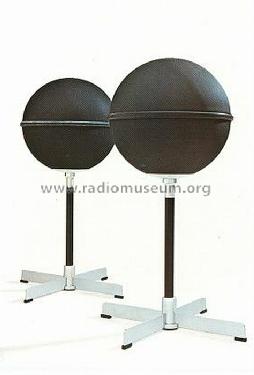

- Model: VS-5313 - JVC - Victor Company of Japan,
- Shape
- Miscellaneous shapes - described under notes.
- Notes
- Omni-Directional Speaker System.
2 way 8 speaker, Acoustic suspension system.
4 free edge woofers 5" cone paper and 4 horn tweeters 2" mylar diaghram.
35 - 20.000 Hz, 80W peak, 40W RMS, 94 db/W (50cm on axis).
Crossover 5.000 Hz, Impedance 8 ohms.
13,5" diameter spherical.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
