• Country
• Poland

• Manufacturer / Brand
• Kabid - Zopan; Warszawa

• Year
• 1983 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 349413

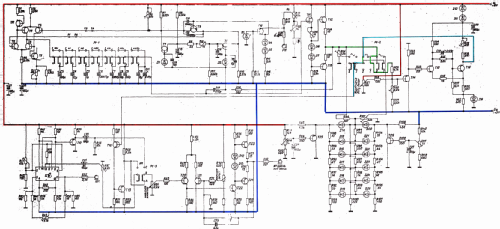

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Function Generator KZ 1404 - Kabid - Zopan; Warszawa

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 300 x 98 x 240 mm / 11.8 x 3.9 x 9.4 inch

• Notes

• Function Generator / Generator funkcyjny KZ 1404:
  Frequenzbereich 0.05 Hz - 1000 kHz
  Sinus, Dreieck, Rechteck - Signale
  Regelbare Amplitude 0 - 10 V an 600 Ohm und Offset
  Extern modulierbar, AM, FM

  Vertrieben als Kabid, Zopan, Meratronic KZ 1404

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
