Steck-Sperrkreis
Kaco, Kupfer-Asbest-Co.; Heilbronn a.N.
- Country
- Germany
- Manufacturer / Brand
- Kaco, Kupfer-Asbest-Co.; Heilbronn a.N.
- Year
- 1938
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 80482

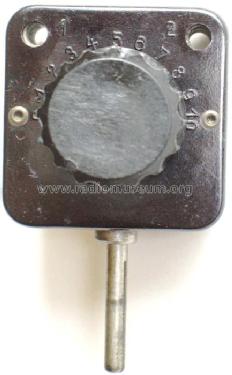

Bildmontage mit 2 Drehkos

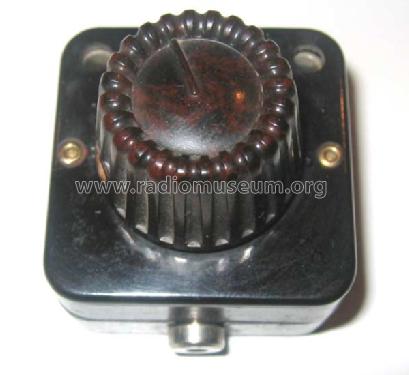

etwas andere Ausführung
Werbung aus: Die Sendung 10/1938
original Prospekt
Originalprospekt

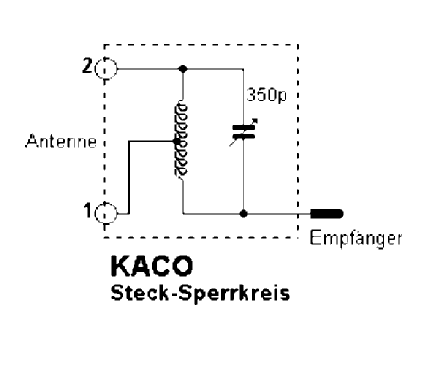

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- RF-Circuit or wave trap (separate, can also be an antenna with amp.)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Steck-Sperrkreis - Kaco, Kupfer-Asbest-Co.;
- Dimensions (WHD)
- 40 x 40 x 40 mm / 1.6 x 1.6 x 1.6 inch
- Notes
- Abstimmbarer Sperrkreis mit zwei Anschlüssen für stark und schwach störende Sender. Anschlussstecker zum Empfänger kann in zwei verschiedenen Positionen um 90° verdreht eingeschraubt werden.
- Price in first year of sale
- 4.00 RM
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Katalog Maho 1938
- Literature/Schematics (1)
- Die Sendung (No. 10, 1938)
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
