Digital Multitester (Multimeter) SK-6440

• Country
• Japan

• Manufacturer / Brand
• Kaise Electric Works, Ltd; Ueda City, Nagano Pref.

• Year
• 1980

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 328771

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multitester SK-6440 - Kaise Electric Works, Ltd;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 85 x 155 x 30 mm / 3.3 x 6.1 x 1.2 inch

• Notes

• 3-½ digit LCD
  Autoranging in VOLT and OHM
  Autopolarity and Overrange indication
  Has no Continuity test buzzer

  Ranges:

  DC V: 0.2 - 2 -20 - 200 -1000 V
  AC V: 2 - 20 - 200 - 600 V
  DC A: 0.2 - 10 A
  AC A: 0.2 - 10 A
  R: 0.2 - 2 - 20 - 200 - 2000 kΩ

• Net weight (2.2 lb = 1 kg)
• 0.270 kg / 0 lb 9.5 oz (0.595 lb)

• Price in first year of sale
• 9,250.00 ptas

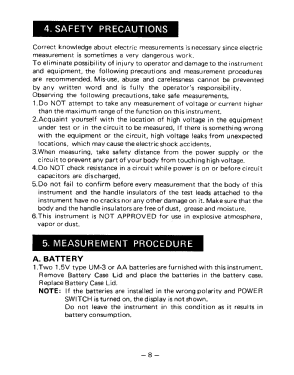

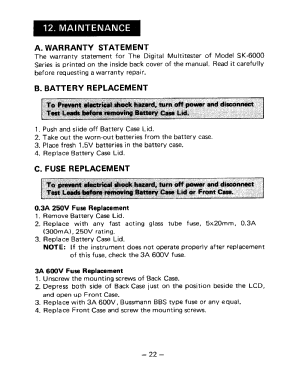

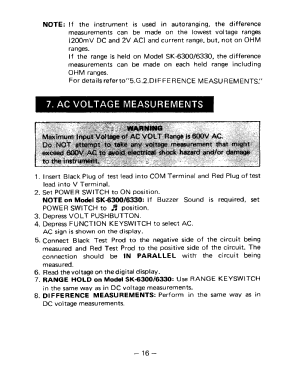

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Jose Juan Casado Caballero. See "Data change" for further contributors.
