Digital Multitester SK-6202

Kaise Electric Works, Ltd; Ueda City, Nagano Pref.

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 345744

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / AA: 2 x 1.5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Multitester SK-6202 - Kaise Electric Works, Ltd;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes

  • 3-½ digit LCD
    Autoranging in VOLT and OHM
    Autopolarity and Overrange indication
    Continuity test buzzer

    Ranges:

    DC V: 0.2 - 2 -20 - 200 -1000 V
    AC V: 2 - 20 - 200 - 750 V
    DC A: 200 mA
    AC A: 200 mA
    R:  0.2 - 2 - 20 - 200 - 2000 - 20000 kΩ

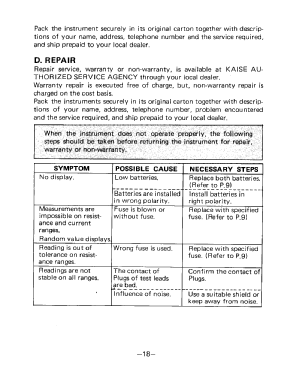

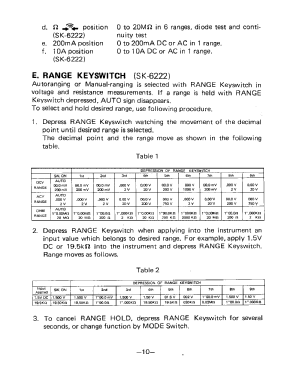

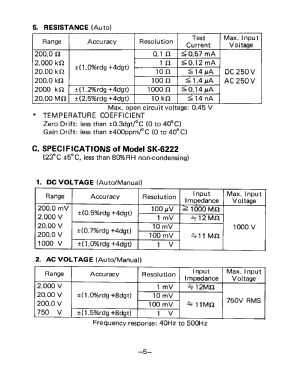

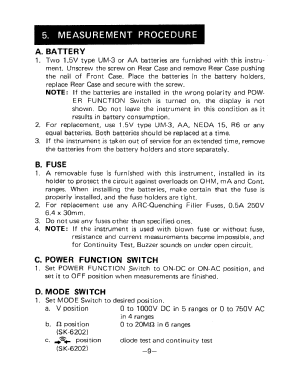

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
