- Country
- Germany
- Manufacturer / Brand
- Kaiser KG, W. bzw. Kaiser-Werke Gebr. Kaiser; Kenzingen bzw. Villingen etc.
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15263

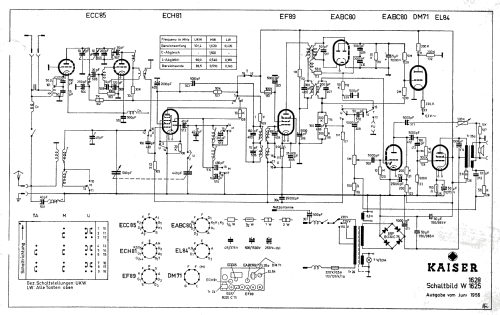

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: W1625 [Pressstoff] - Kaiser KG, W. bzw. Kaiser-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 370 x 250 x 195 mm / 14.6 x 9.8 x 7.7 inch
- Notes
- [14. Taxliste Franzis-Verlag, 1966]
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 230.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- Lange, Schaltungen der Funkindustrie (Bd. 6, S. 107)
