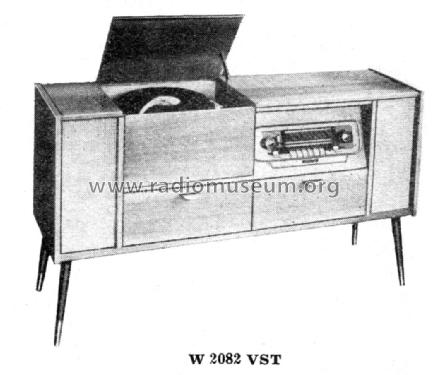

W2082VST dunkel

Kaiser KG, W. bzw. Kaiser-Werke Gebr. Kaiser; Kenzingen bzw. Villingen etc.

Data
Forum
Pictures
Collections

  • Year
  • 1960–1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23981

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: W2082VST [dunkel] - Kaiser KG, W. bzw. Kaiser-
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1380 x 780 x 365 mm / 54.3 x 30.7 x 14.4 inch
  • Notes

  • Rundfunk-Chassis = W1830 Stereo;
    Phono-Chassis 1960 = Dual 1004S
    Phono-Chassis 1961 = Dual 1007.

    Handbuch des Rundfunk- und Fernseh-Grosshandels 1960/61 führt fälschlicherweise Abmessungen von 138x56x58 cm.

  • Net weight (2.2 lb = 1 kg)
  • 45 kg / 99 lb 1.9 oz (99.119 lb)
  • Price in first year of sale
  • 798.00 DM
  • External source of data
  • Erb
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
