• Year
  • 1962–1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24729

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 4560/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

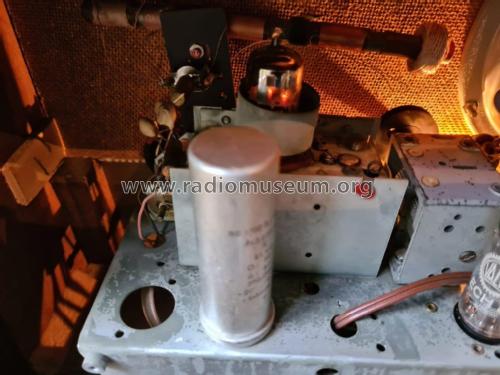

  • Model: W2126 [natur] - Kaiser KG, W. bzw. Kaiser-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 420 x 255 x 155 mm / 16.5 x 10 x 6.1 inch
  • Notes
  •
  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Price in first year of sale
  • 246.00 DM
  • External source of data
  • Erb
