- Country
- Germany
- Manufacturer / Brand
- Kaiser KG, W. bzw. Kaiser-Werke Gebr. Kaiser; Kenzingen bzw. Villingen etc.
- Year
- 1967–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27015
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

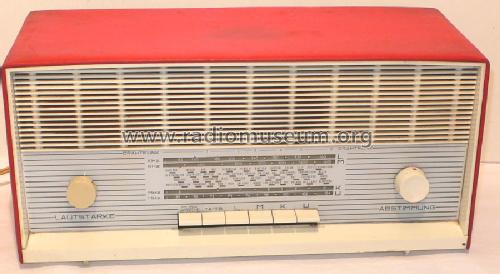

- Model: W2620 - Kaiser KG, W. bzw. Kaiser-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 385 x 180 x 165 mm / 15.2 x 7.1 x 6.5 inch
- Notes
- Gehäuse mit Stoffbezug in Schottenkaro oder mit Kunstlederbezug, rot oder weiß.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 198.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
