• Country
• Germany

• Manufacturer / Brand
• Kaiser KG, W. bzw. Kaiser-Werke Gebr. Kaiser; Kenzingen bzw. Villingen etc.

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

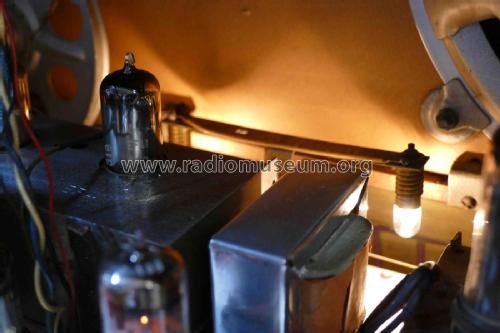

• Valves / Tubes

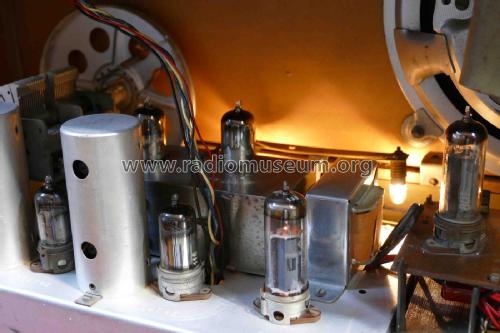

• ECH42 EAF42 EAF42 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: W560R - Kaiser KG, W. bzw. Kaiser-

• Shape

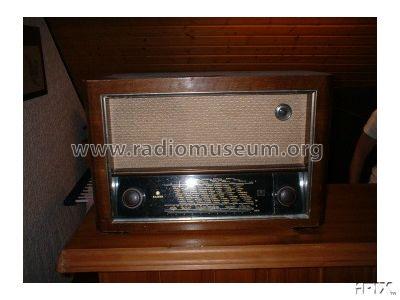

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 370 x 240 mm / 22 x 14.6 x 9.4 inch

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Allgemeine Rundfunk-Technik (5004)
