- Country
- Germany
- Manufacturer / Brand
- Kaiser KG, W. bzw. Kaiser-Werke Gebr. Kaiser; Kenzingen bzw. Villingen etc.
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149191
Copyrigth exist
Copyrigth exist
Copyrigth exist
Copyrigth exist
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; Export model
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

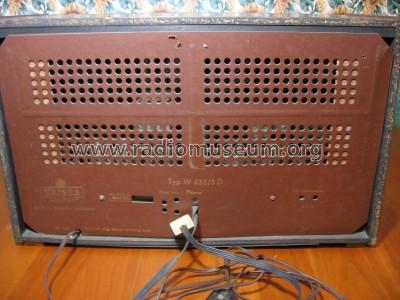

- Model: W635/3D - Kaiser KG, W. bzw. Kaiser-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 20.5 x 15 x 13 inch / 521 x 381 x 330 mm
- Notes
- Exportvariante des W1635/3D mit 2.Kurzwelle anstelle der Langwelle. Typisch amerikanische Skala ohne Stationsnamen. 3 Lautsprecher, nach vorn strahlend.
Export version of Model W1635/3D. Has 2nd SW instead of LW. Scale in american style without station names. Three speakers in front. BC: 520-1600 KHz SW band: 6 - 22 MHz. FM: 88-108 MHz.
- Author
- Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
