• Country
• Germany

• Manufacturer / Brand
• Kaiser Electronic GmbH; Heidelberg

• Year
• 1977 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 125920

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Metal case

• from Radiomuseum.org

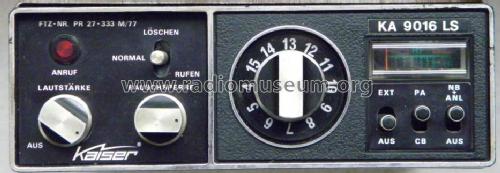

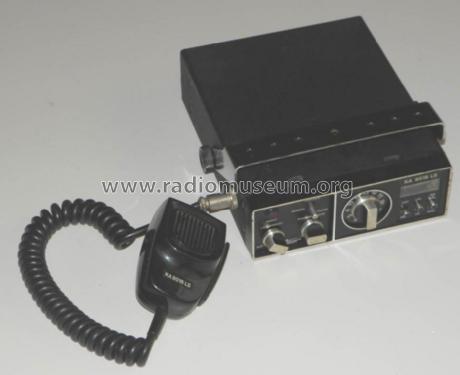

• Model: CB-Sprechfunkgerät KA9016LS - Kaiser Electronic GmbH;

• Dimensions (WHD)
• 170 x 60 x 220 mm / 6.7 x 2.4 x 8.7 inch

• Notes
• Mobilfunkgerät 12 Kanal in AM, Frequenzbereich 27,005 bis 27,135 MHz, HF-Ausgangsleistung 0,5 W, mech. Kanalschaltung, Instrument für RX und TX, Frequenzerzeugung über Quarz (Steckquarze), Selektivruf eingebaut.
  1 Dual-Gate-Mos-Fet, 26 Dioden.
  FTZ-Nr.: PR 27-333 M/77

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
