Funkprüfgerät b - Prüfgerät Fu Pr b
Kaiser Apparatebau; Fürth
- Country
- Germany
- Manufacturer / Brand
- Kaiser Apparatebau; Fürth
- Year
- 1958
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 304810
- Number of Tubes
- 2
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Funkprüfgerät b - Prüfgerät Fu Pr b - Kaiser Apparatebau; Fürth
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 460 x 370 x 230 mm / 18.1 x 14.6 x 9.1 inch
- Notes
-
Transportables Gerät zur Prüfung des Funksprechgeräts FuG 7 (Telefunken).

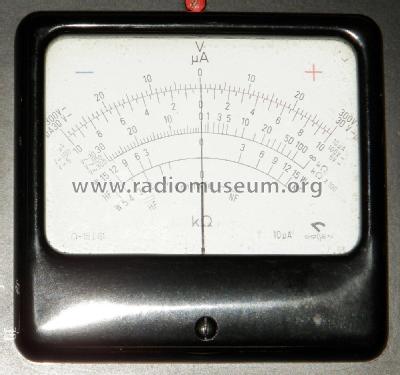

Umfasst Prüfsender (73 bis 90 MHz), Tongenerator (800 Hz), Vielfachspannungsmesser (Gleichspannungen 5 V, 30 V, 100 V, 300 V), Ohmmeter (1 KΩ bis 5 MΩ), Durchgangsprüfer, HF-Absorber und Tonfrequenz-Absorber.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Mentioned in
- -- Original-techn. papers. (Das Funkprüfgerät b (Fu Pr b), Beschreibung und Bedienungsanleitung)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
