• Country
• Germany

• Manufacturer / Brand
• Kaiser Electronic GmbH; Heidelberg

• Year
• 1975 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 121975

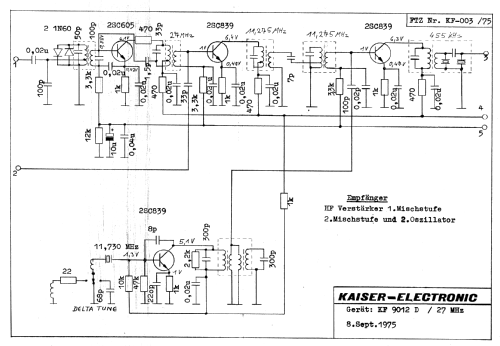

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: CB-Funk-Heimstation KF9012D - Kaiser Electronic GmbH;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 140 x 250 mm / 15.4 x 5.5 x 9.8 inch

• Notes
• AM, 12 Kanäle, 4 - 15, 0.5 W Pout.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 1,048.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
