• Country
• Germany

• Manufacturer / Brand
• Kaiser Electronic GmbH; Heidelberg

• Year
• 1985

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 200386

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radiocontrol 11 - Kaiser Electronic GmbH;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 98 x 216 x 50 mm / 3.9 x 8.5 x 2 inch

• Notes

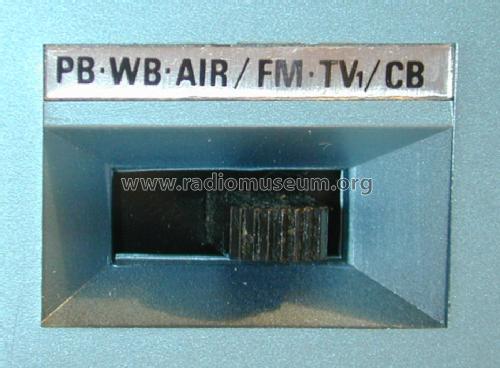

• Durchstimmbarer 5-Band-Portable-Empfänger für
  80 Kanäle CB-Funk.
  VHF-Bereich 54 - 88 MHz;
  UKW-Rundfunk 88 - 108 MHz;
  Flugfunk-Bereich 108 - 138 MHz;
  VHF-Band Amateur- + Kommerzfunk 138 - 176 MHz.
  Nur für den Export bestimmt, Betrieb in der BRD seinerzeit für Nichtfunkamateure nicht erlaubt.
  Trageschlaufe.

  Made in Hong Kong.

• Net weight (2.2 lb = 1 kg)
• 0.460 kg / 1 lb 0.2 oz (1.013 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
