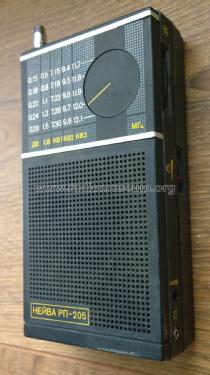

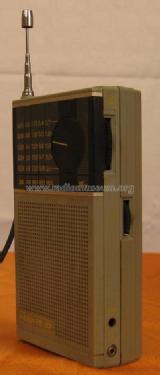

Nejva {Нейва} RP-205 {РП-205}

• Country
• Soviet Union

• Manufacturer / Brand
• Kamensk-Uralsk Radio Works

• Year
• 1990/1991

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98849

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• КП303 A283D

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Nejva {Нейва} RP-205 {РП-205} - Kamensk-Uralsk Radio Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 88 x 162 x 37 mm / 3.5 x 6.4 x 1.5 inch

• Notes
• Coverage LW, MW, 3 SW bands (25, 31, 41 m ).

• Price in first year of sale
• 62.00 RUR

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
