• Country
• Soviet Union

• Manufacturer / Brand
• Kamensk-Uralsk Radio Works

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 331987

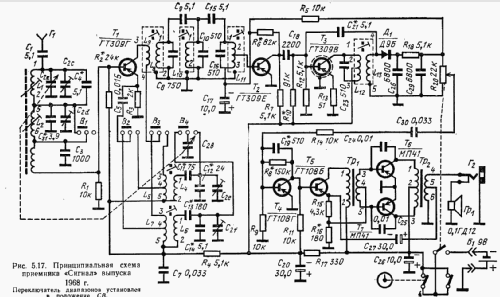

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• ГТ309 ГТ309 ГТ309 ГТ108 ГТ108 МП41 МП41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.06 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Сигнал - Signal [1968] - Kamensk-Uralsk Radio Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 121 x 77 x 36 mm / 4.8 x 3 x 1.4 inch

• Notes

• Mechanische Uhr mit Timer-Funktion

  Dieses Modell unterscheidet sich im Design vom früheren Signal

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Mentioned in
• Справочник транзисторным радиоприёмникам - И.Ф.Белов, Е.В.Дрызго

• Author
• Model page created by Chris Lepiarczyk. See "Data change" for further contributors.
