Ch= C
Kastell; Madrid
- Country
- Spain
- Manufacturer / Brand
- Kastell; Madrid
- Year
- 1968 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 326117

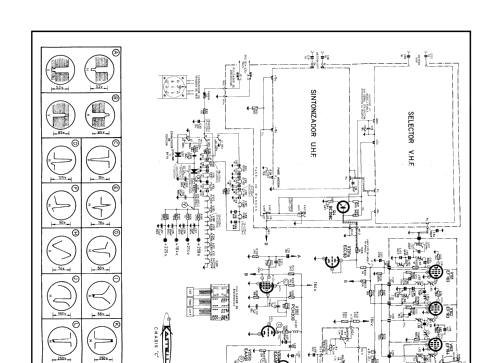

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- EF183 EF183 EF184 PCL200 EF80 EF80 PCH200 EAA91 PCF802 PCF80 PL84 PL504 PY88 DY87 or DY802 ECC83 PL84 A47-11W or A59-12W
- Number of Transistors
- 1
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= C - Kastell; Madrid
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Industrias Kastell, S.A., Chasis tipo C (Ch= C)
Chasis TV B/N para 19" o 24" con selector VHF y Sintonizador UHF transistorizados
