1.Sat ZF-Verstärker VWS 04 BN 230597

Kathrein, Anton; Rosenheim

Data
Forum
Pictures
Collections

  • Year
  • 1997 ??
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 260723

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 12-20 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 1.Sat ZF-Verstärker VWS 04 BN 230597 - Kathrein, Anton; Rosenheim
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 97 x 43.5 x 29.5 mm / 3.8 x 1.7 x 1.2 inch
  • Notes

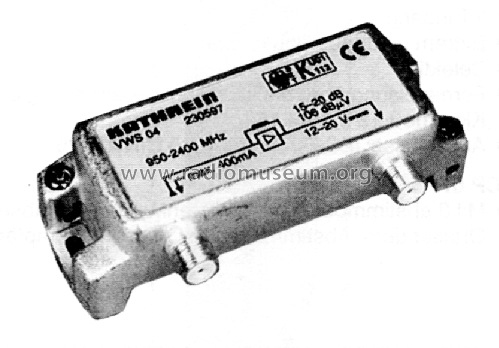

  • Verstärker für 1.Sat-ZF, 950-2400 MHz,

    Verstärkung 15-20 dB, mit steigender Tendenz zu höheren Frequenzen,

    max. Ausgangspegel 106 dBµV,

    F-Buchsen.

  • Net weight (2.2 lb = 1 kg)
  • 0.150 kg / 0 lb 5.3 oz (0.33 lb)
