• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1973

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 257631

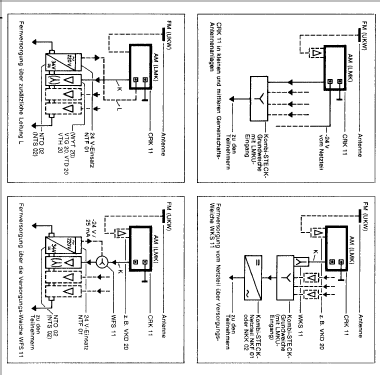

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Powered by external power supply or a main unit. / DC 24 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elektronische AM-Antenne CRK 11 - Kathrein; Rosenheim

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 186 x 98 x 72 mm / 7.3 x 3.9 x 2.8 inch

• Notes

• Elektronische AM-Antenne.

  Verstärkung der E-Komponente, daher möglichst hoch auf die Mastspitze im Freien montieren, dann 12 dB Gewinn gegenüber einer passiven Rutenantenne.

  0,15 - 26 MHz,

  Stromversorgung -24V 25mA über Fernspeise-Netzteil oder separate Zuführung.
