F 3 und F 4/5 Kombinations-Antenne Combina 53 AKK 01 BN 213.108
Kathrein; Rosenheim
- Country
- Germany
- Manufacturer / Brand
- Kathrein; Rosenheim
- Year
- 1973 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 258089
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: F 3 und F 4/5 Kombinations-Antenne Combina 53 AKK 01 BN 213.108 - Kathrein; Rosenheim
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 2200 x 900 x 0 mm / 86.6 x 35.4 x 0 inch
- Notes
-
VHF/UHF-Kombinationsantenne, K5-12, K21-65, 53 Elemente,

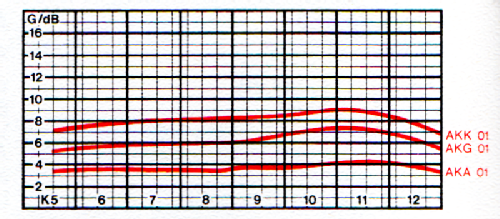

Gewinn: VHF 7,5-9,5 dB, UHF 8,5-14 dB,
V/R: VHF 17-19 dB, UHF 23-28 dB.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by a member from D. See "Data change" for further contributors.
