• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1990 ??

• Category
• Digital terrestrial, Internet and SAT receiver (also analogue)

• Radiomuseum.org ID
• 215215

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• SAT-IF

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

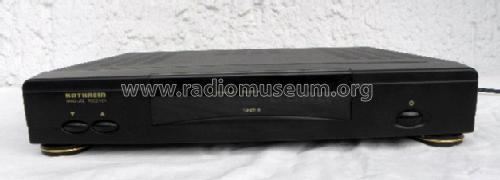

• Model: Satelliten Receiver UFD93 - Kathrein; Rosenheim

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 67 x 275 mm / 14.6 x 2.6 x 10.8 inch

• Notes
• UFD93 von Kathrein, analoger Twin-Receiver.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Werner Wussow. See "Data change" for further contributors.
