• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1994 ??

• Category
• Digital terrestrial, Internet and SAT receiver (also analogue)

• Radiomuseum.org ID
• 259787

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• SAT-IF

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Satelliten-Receiver UFD 89 BN 260216 - Kathrein; Rosenheim

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 370 x 67 x 270 mm / 14.6 x 2.6 x 10.6 inch

• Notes

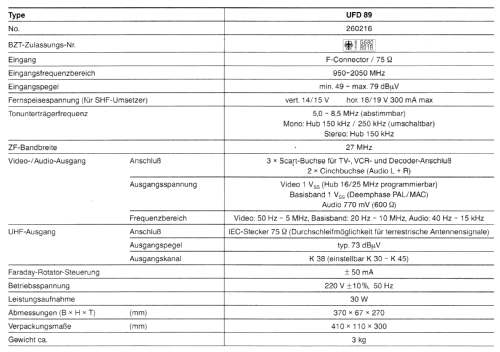

• Sat-Receiver für Astra, Kopernikus, ECS, Intelsat, 950-2050 MHz,

  vert. 14V / hor. 18V,

  99 Programmspeicher,

  UHF-Modulator K30-45,

  3 Scart-Anschlüsse, TV / VCR / Decoder,

  Anschluß für Faraday-Rotator,

  IR-Fernsteuerung.



• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)
