Speisesystem UAS 175 BN 268033

Kathrein; Rosenheim

Data
Forum
Pictures
Collections

  • Year
  • 1997 ??
  • Category
  • Antenna (Aerial) or Coupler
  • Radiomuseum.org ID
  • 260722

Click on the schematic thumbnail to request the schematic as a free document.

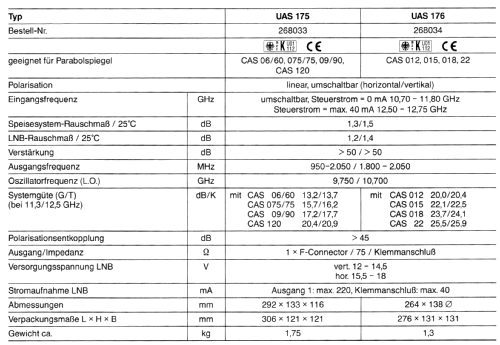

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 11,5-19 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Speisesystem UAS 175 BN 268033 - Kathrein; Rosenheim
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 292 x 133 x 116 mm / 11.5 x 5.2 x 4.6 inch
  • Notes

  • LNC mit zwei Frequenzbereichen, zur Montage an Offset-Parabol-Antennen,

    10,70-11,80 GHz, LO 9,750 GHz, ZF 950-2050 MHz, vert / hor 14/18V, Steuerstrom 0,

    12,50-12,75 GHz, LO 10,7 GHz, ZF 1800-2050 MHz, vert / hor 14/18V, Steuerstrom max. 40 mA über separate Steuerleitung zum Polarizerausgang des Receivers.

  • Net weight (2.2 lb = 1 kg)
  • 1.750 kg / 3 lb 13.7 oz (3.855 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
