Universal-Speisesystem UAS 474 BN 268090

Kathrein; Rosenheim

  • Year
  • 1997 ??
  • Category
  • Antenna (Aerial) or Coupler
  • Radiomuseum.org ID
  • 260589

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 11,5-19 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Universal-Speisesystem UAS 474 BN 268090 - Kathrein; Rosenheim
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 200 x 44 x 97 mm / 7.9 x 1.7 x 3.8 inch
  • Notes
  • Bezeichnung auf dem Gerät: UAS 474 268090 A06

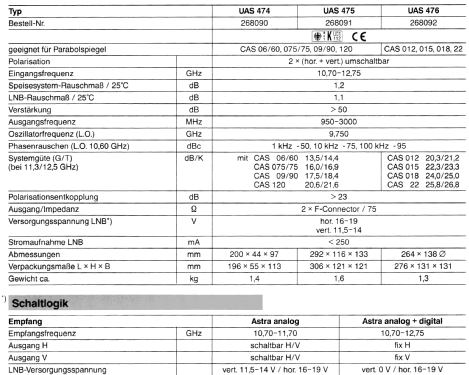

    Breitband-LNC, zur Montage an Offset-Parabol-Antennen,

    10,70-12,75 GHz, LO 9,75 GHz, ZF 950-3000 MHz, bei Breitbandeinsatz getrennte Ausgänge für vert/hor, wobei nur Ausgang Hor. 16-19 V benötigt.

    Mit dem Einsatz der Umsetzer/ Bereichsweiche UWS 78 erfüllt das Gesamtsystem die Astra-Spezifikation für " Universal SMATV-Systeme".





  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
