Concord A6243
KEF Electronics; Tovil, Maidstone, Kent
- Country
- Great Britain (UK)
- Manufacturer / Brand
- KEF Electronics; Tovil, Maidstone, Kent
- Year
- 1966
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 315059
Sold on gzhifi.com China item 90159
Sold on gzhifi.com China item 90159
Sold on gzhifi.com China item 90159
Sold on gzhifi.com China item 90159
Original prospect
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concord A6243 - KEF Electronics; Tovil,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 15 x 24 x 9.875 inch / 381 x 610 x 251 mm
- Notes
-

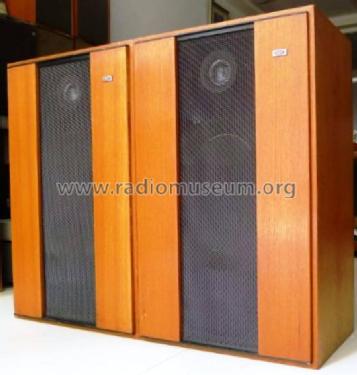

2-way hi-fi stand/floorstanding loudspeakers in French Walnut or Burma Teak venered wooden cabinets with lustre black metal grilles and trim bars. Optional stands.
Specification
System type: Two-way, floor standing
Enclosure type: Closed box
Input impedance: 8-16 ohms
Maximum input power: 15W rms, 30W peak
System resonance: 45Hz
Frequency range: 30-20,000Hz
Input connections: Terminals
Drive units: B139 bass unit (A6171), T15 tweeter (A6236), Crossover: A6305
- Net weight (2.2 lb = 1 kg)
- 37 lb 0 oz (37 lb) / 16.798 kg
- Mentioned in
- -- Original prospect or advert (1967 KEF brochure)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
