• Country
• Great Britain (UK)

• Manufacturer / Brand
• KEF Electronics; Tovil, Maidstone, Kent

• Year
• 1965

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 315002

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: K2 Duette - KEF Electronics; Tovil,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 15 x 24 x 9.5 inch / 381 x 610 x 241 mm

• Notes

• 2-way floor-standing loudspeakers in American walnut or teak veneered wooden cabinets with coffee fleck cloth grilles.

  Specification
  System type: Two-way, floor standing
  Enclosure type: Closed box
  Input Impedance: 15 ohms
  Maximum input power: 15W rms, 30W peak
  System resonance: 45Hz
  Frequency range: 30 - 20,000Hz
  Input connections: terminals
  Drive units: B139 bass unit (A6171), T15 tweeter (A6236)

  See also the KEF K2 Duette de Luxe model in a luxury cabinet.

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• Mentioned in

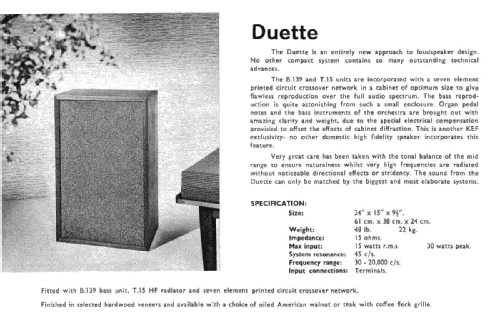

• -- Original prospect or advert (1965 KEF Brochure)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
