Digital Autoranging Multimeter 175

• Country
• United States of America (USA)

• Manufacturer / Brand
• Keithley Instruments Inc.; Cleveland (OH)

• Year
• 1983

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 224907

• Picture

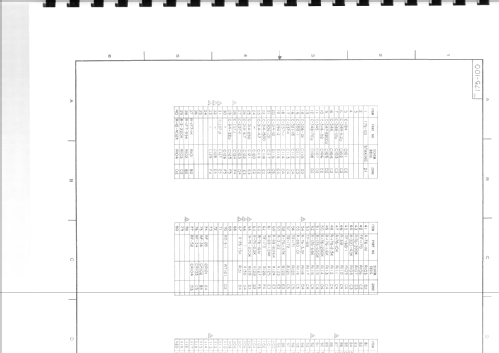

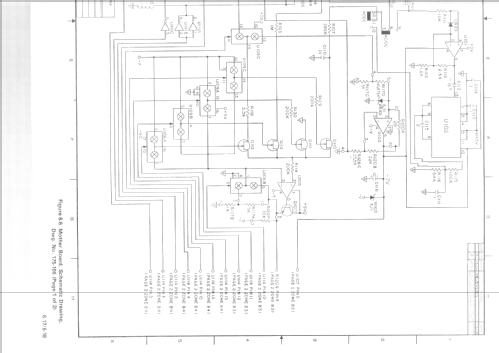

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 105-125; 210-250 / 9,6 NiCd Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Autoranging Multimeter 175 - Keithley Instruments Inc.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 235 x 89 x 275 mm / 9.3 x 3.5 x 10.8 inch

• Notes

• Features:

  • 4 1/2 Digit LCD Display
  • Fast Autoranging
  • Bench or Portable
  • Digital Calibration
  • 100 Point Data Logger
  • 10uV/10mOhm/10nA Sensitivity
  • 0,03% Basic DCV Accuracy
  • TRMS AC
  • dBm/Relative Functions
  • Min/Max Reading Hold
  • Safety Input Jacks
  • 10A Capability
  • 100KHz Specified AC Bandwidth

  Options:

  • Model 1758 Rechargeable Battery Pack 9,6V NiCd
  • Model 1753 IEEE-488 Interface



• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Thomas Wuwer. See "Data change" for further contributors.
