Digital Multimeter 179
Keithley Instruments Inc.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Keithley Instruments Inc.; Cleveland (OH)
- Year
- 1978
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 190745

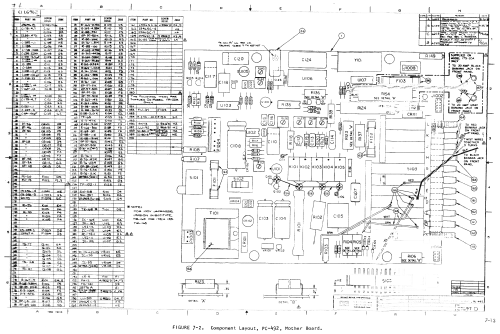

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125; 210-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter 179 - Keithley Instruments Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 235 x 85 x 275 mm / 9.3 x 3.3 x 10.8 inch
- Notes
- Optional battery pack 1788;
DC: 200 mV - 1200 V;
AC: 200 mV - 1000 V;
DC and AC true RMS current: 0.2 mA - 2000 mA;
Resistance: 2 kΩ - 20 MΩ.
- Net weight (2.2 lb = 1 kg)
- 1.7 kg / 3 lb 11.9 oz (3.744 lb)
- Price in first year of sale
- 43,750.00 Ptas
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Mundo Electronico Nº 81 de 1979
- Literature/Schematics (1)
- (A) Elektronik Report Heft 5, Mai 1978, S. 29 Werbeschaltung
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
