• Country
• Australia

• Manufacturer / Brand
• Kelvinator; Keswick, South Australia

• Year
• 1957–1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 315018

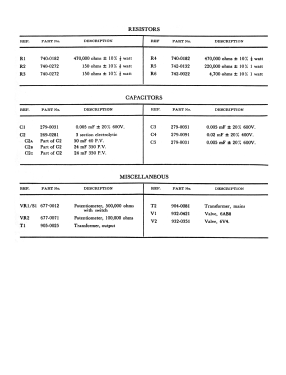

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AB8 6V4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-225; 226-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Electrogram C1-K82 Ch= C1-K - Kelvinator; Keswick, South

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.5 x 8 x 15.5 inch / 368 x 203 x 394 mm

• Notes

• Portable gram with 4-speed record changer.

  Colours available in Black/Pink, Tan/Grey, Green, Two-Tone Blue. & Maroon/Grey.

  See also HMV Model C1-82.

• Price in first year of sale
• 49.35 AUS £

• Mentioned in
• Mingay's Price Service (May 1957 to Feb 1959.)

• Literature/Schematics (1)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H54 (for HMV C1).)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 157.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.

• Other Models

• Here you find 46 models, 26 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kelvinator; Keswick, South Australia
