New Londoner A2-K4M Ch= A2-K
Kelvinator; Keswick, South Australia
- Country
- Australia
- Manufacturer / Brand
- Kelvinator; Keswick, South Australia
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291269

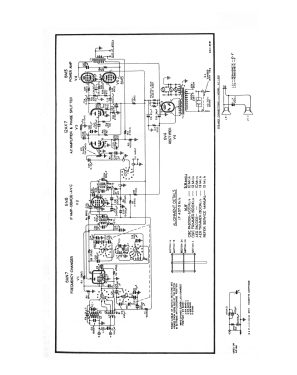

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: New Londoner A2-K4M Ch= A2-K - Kelvinator; Keswick, South
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 36.75 x 31.25 x 17 inch / 933 x 794 x 432 mm
- Notes
-
Rebadged HMV Melodie A2-4M with BSR UA8 changer.
The radio has three short-wave bands.
Cabinet finishes in Walnut & Rosewood.
- Net weight (2.2 lb = 1 kg)
- 82 lb 0 oz (82 lb) / 37.228 kg
- Price in first year of sale
- 131.25 AUS £
- Literature/Schematics (1)

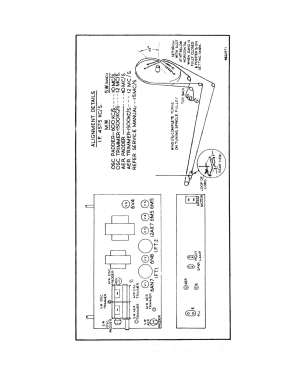

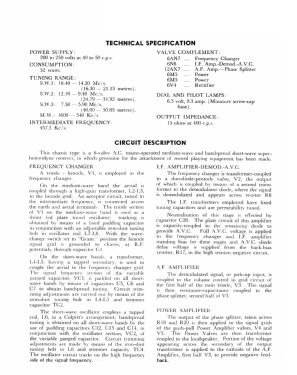

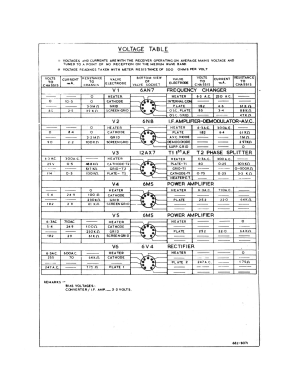

- - - Manufacturers Literature (Kelvinator Radio Service Manual for Type A2-K Chassis.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H52.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
