164-B Ch= 64-B
Kennedy Co., Colin B.; San Francisco & St.Louis
- Country
- United States of America (USA)
- Manufacturer / Brand
- Kennedy Co., Colin B.; San Francisco & St.Louis
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18722
-
- alternative name: Colin B. Kennedy Corp.
- Brand: Globe Trotter

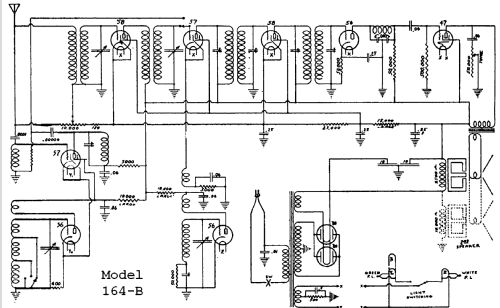

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 164-B Ch= 64-B - Kennedy Co., Colin B.; San
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 4 legged console with stretcher base.
In SW the long wave (in fact BC) mixer becomes an IF amplifier, and a separate SW oscillator and mixer are operational.
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (2)
- Pre-War Consoles
