- Country
- Italy
- Manufacturer / Brand
- Kennedy (marca / brand); ved. le note / see text
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150657
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

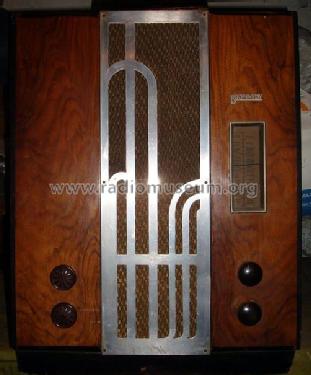

- Model: 305 - Kennedy marca / brand; ved. le
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Il mobile deriva dal modello americano Majestic 161.
Controllo di tono. Onde Medie e tre gamme di onde Corte.
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
